BlueWave MX-150
High-Intensity LED Spot-Curing System with the Flexibility of Multiple Systems
Available Globally - CE Marked
Dymax BlueWave® MX-150 curing system provides manufacturers with the curing flexibility they need, in a smaller, more efficient design. The unit is comprised of two main parts, a controller with an easy-to-use touchscreen interface and a high-intensity LED emitter which is uniquely designed to offer higher, more consistent curing intensity than traditional spot-curing systems. Curing energy is created using an LED chip in the emitter, unlike traditional spot-cure systems, where it is located in the controller. Locating the LED chip at the point-of-cure provides more consistent curing by addressing potential intensity loss caused by the use of long or bent lightguides.
With this new design, the system can be truly tailored to users’ curing needs – allowing them to choose from three different wavelength LED emitters (365, 385, or 405 nm) so optimal cures are achieved. Users also have endless setup flexibility; for automated curing processes, the emitter can be easily mounted to robotic arms or further from the controller without fear of intensity variations. When used as a bench-top curing system, the unit can be paired with a stand, and shielding or a lightguide can be connected to the system for specialized applications.
Heat Control
For applications with heat-sensitive components, interruptions in the exposure duration can slow the materials’ temperature climb during the curing process. This isn’t a concern with the BlueWave® MX-150 because the curing profile can be optimized to reduce the risk of substrate damage.
Admin and Production Modes
The admin mode fully unlocks the device and allows for setting curing time and intensity cycles. Each individual curing cycle can be entered and saved as a program and recalled when needed. Production mode is designed for simple operation by manufacturing personnel. Settings and access to admin mode can be password protected using the full QWERTY keyboard.
Take advantage of the opportunity to evaluate our light-curing systems for two weeks free of charge through our Try-and-Buy program.
Features
Features
- High Intensity of up to 40 W/cm²
- Quickly cures a variety of materials
- LED emitters for 365, 385, or 405 nm wavelengths
- Cures LED-optimized and UV/Visible-light curable materials
- Wavelength flexibility allows co-optimization of adhesive and cure system for optimal cure
- LED chip located in the emitter, not the controller
- Consistent intensity
- Mounted emitter saves the cost of lightguides
- Eliminates potential intensity loss from long or bent lightguides
- Easily mounted to robotic arms with no intensity variation
- Emitter can be mounted closer to application, while the controller remains close to the operator
- Admin and production sides
- Production mode for simple on/off operation
- Curing programs can be easily entered, stored, and recalled when needed
- Units can be password protected so only the Production Mode can be accessed by workers
- Touch screen with full keyboard
- Improved user interface
- Compatible with 3- and 5-mm lightguides with Wolf Connector
- Utilizes standard/readily available lightguides
- Instant on/off
- No warm-up period
- More energy efficient
- Efficient LED temperature management and system monitoring
- Maximized continuous operation without overheating
- Comfortable hand-held operating temperature
- Temperature monitoring assures maximum LED life
- Checks presence of lightguide or other delivery optic
- PLC interface for easy inclusion in automated systems
Resources
Resources
Manual
Quick Starts / FAQs
Quick Start: MX-150 4-Pole Lightguide Adapter
Quick Start: MX-150 Lightguide Simulator
How To
How to Validate a Spot-Cure System
Selector Guide
Guide: Light-Cure Equipment
Product Bulletin
Equipment Drawings
CAD (STEP): MX-150 Emitter
CAD (STEP): MX Series Controller
CAD (STEP): MX-MIM
CAD (STEP): MX 4 Channel Controller
CAD (STEP): MX-150 5MM Light Guide
System Specifications
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touch| Property | Specifications |
|---|---|
| Output frequency | RediCure: 365 nm |
| PrimeCure: 385 nm | |
| VisiCure: 405 nm | |
| Intensity output* | RediCure: 24 W/cm² |
| PrimeCure: 38 W/cm² | |
| VisiCure: 36 W/cm² | |
| Power supply input | 100-240V≈ 2.5A, 50-60Hz |
| LED timer | 0 to 999 seconds |
| LED activation | Foot pedal, LCD touch screen, or PLC |
| Cooling | Air Cooled |
| Dimensions (W x D x H) | Controller: 5.14 in x 7.19 in x 7.35 in (13.1 cm x 18.3 cm x 18.7 cm) |
| Emitter: 7.9 in x 1.97 in x 1.97 in (20.06 cm x 5 cm x 5 cm) | |
| Weight | Controller: 2.6 lbs. (1.18 kg) / Emitter: 1.4 lbs. (0.64 kg) |
| Unit warranty | 1 year from purchase date |
| Operating environment | 10-40°C, 0-80% non-condensing |
| * | Measured using a Dymax ACCU-CAL™ 50-LED Radiometer at a distance of 0 mm. |
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

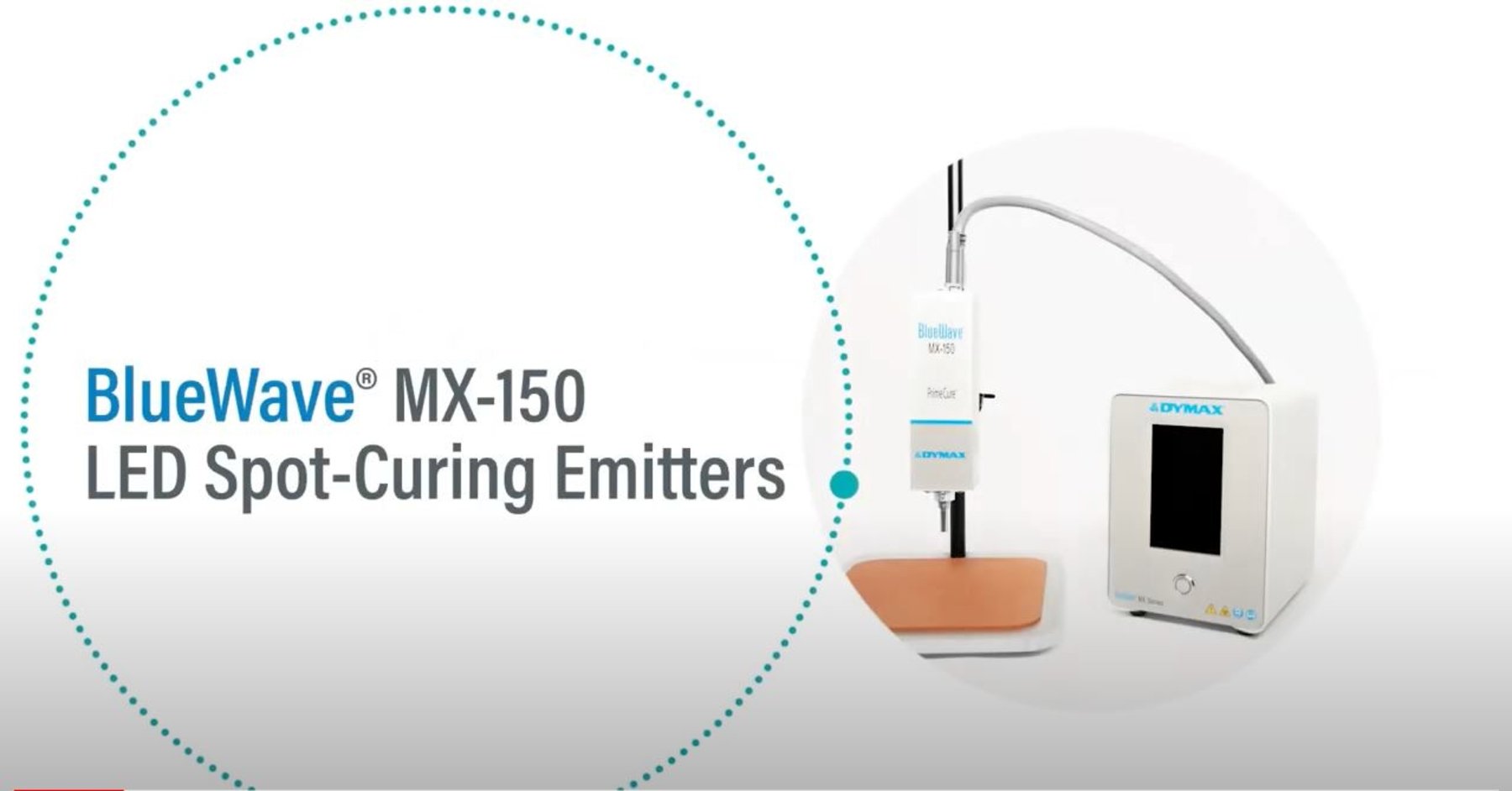

Get in touchProduct Spotlight: BlueWave® MX-150 LED Spot-Curing System
The BlueWave® MX-150 LED spot curing system is comprised of a controller and a high-intensity LED emitter. Available in 365, 385, and 405 nanometer wavelengths, the MX-150 emitter offers intensities up to 40W of power.
How to Setup: BlueWave MX-150 System
If you are a new user of the BlueWave MX-150 system, watch this video to learn how to set up the system.
How to Setup: BlueWave MX-150 D-Connector Adapter
Manufacturers who want to use D-connector type lightguides with the Dymax BlueWave MX-150 system can do so with an adapter (PN 42932 or PN 60514). Learn how to easily install that adapter in this video.
Part Numbers
Build a complete solution or find replacement parts for your project
Limited quantities, please submit RFQ for pricing and availability.
BlueWave® MX-Series 2-Channel Controller
43184
No Power Cord*
*The appropriate power cord is included for orders in Europe.
43185
BlueWave® MX-Series 2-Channel Controller - North American Power Cord (115V plug)
43186
Asian Power Cord (Type G)
C- 43185 (M20204)
Clearance - BlueWave® MX-Series 2-Channel Controller - North American Power Cord (115V plug)
BlueWave® MX-Series 4-Channel Controller
43181
No Power Cord*
*The appropriate power cord is included for orders in Europe.
43182
North American Power Cord
43183
Asian Power Cord (Type G)
C- 43182 (M40025)
Clearance - BlueWave® MX-Series 4-Channel Controller, North American Power Cord
Limited quantities, please submit RFQ for pricing and availability.
BlueWave® MX-150 LED Emitters
42336
RediCure® (365 nm)**
** 5-mm lightguide simulator comes with every emitter.
42337
PrimeCure® (385 nm)**
** 5-mm lightguide simulator comes with every emitter.
42338
VisiCure® (405 nm)**
** 5-mm lightguide simulator comes with every emitter.
Lightguides and Optics
35101
Single-Pole Lightguide, 5-mm x 500 mm*
*All standard Wolf entrance fitting lightguides will physically couple to this system, but only configurations listed have been tested and verified to be fully functional.
35102
Single-Pole Lightguide, 5-mm x 1,000 mm*
*All standard Wolf entrance fitting lightguides will physically couple to this system, but only configurations listed have been tested and verified to be fully functional.
36238
Single-Pole Lightguide, 5-mm x 1,500 mm*
*All standard Wolf entrance fitting lightguides will physically couple to this system, but only configurations listed have been tested and verified to be fully functional.
36987
Lightguide Simulator, 5-mm Diameter**
**5-mm lightguide simulator comes with every emitter.
37043
2-Pole Liquid-Filled Lightguide, 3-mm x 1,000 mm*
*All standard Wolf entrance fitting lightguides will physically couple to this system, but only configurations listed have been tested and verified to be fully functional.
38676
Four pole, liquid-filled lightguide, 3 mm x 1M
Lightguide adapter conversion kit (part #42932 listed under accessories) is required for use with BlueWave® MX-150 with serial numbers lower than 1000
Lightguide adapter conversion kit (part #60514 listed under accessories) is required for use with BlueWave® MX-150 with serial numbers at 1000 or higher
38851
Four pole, liquid-filled lightguide, 3 mm x 1.5 M
Lightguide adapter conversion kit (part #42932 listed under accessories) is required for use with BlueWave® MX-150 with serial numbers lower than 1000
Lightguide adapter conversion kit (part #60514 listed under accessories) is required for use with BlueWave® MX-150 with serial numbers at 1000 or higher
38998
Single-Pole Lightguide, 5-mm x 2,000 mm*
*All standard Wolf entrance fitting lightguides will physically couple to this system, but only configurations listed have been tested and verified to be fully functional.
39791
Four pole, fiber optic lightguide, 3 mm x 1M
Lightguide adapter conversion kit (part #42932 listed under accessories) is required for use with BlueWave® MX-150 with serial numbers lower than 1000
Lightguide adapter conversion kit (part #60514 listed under accessories) is required for use with BlueWave® MX-150 with serial numbers at 1000 or higher
41148
Adjustable Taper Shoulder Focusing Lens (5 mm)
C- 35101
Clearance - Single pole, Wolf-Style Lightguide, 5 mm x 0.5M. Compatible with: BlueWave® MX-150
Limited quantities, please submit RFQ for pricing and availability.
C- 38676
Clearance - Four Pole, Extended Range Lightguide, 3 mm x 1.0 M. Compatible with BlueWave MX-150
Limited quantities, please submit RFQ for pricing and availability.
Accessories
39700
Single Lightguide Mounting Stand
41325
Acrylic Lightguide Mounting Stand
41395
Three-Sided Acrylic Shield
41595
Lightguide Stand Expansion Kit
42390
MX-Series Single Emitter Mounting Stand
Mounting stand with adjustable height for a single MX-series emitters
42909
MX-Series Single Emitter Mounting Kit
Mounting adapter for attaching a single MX-series emitter
42932
Lightguide adapter conversion kit. Converts to D-style lightguides - for older MX-150 units with serial numbers lower than 1000.
*Required to use BlueWave® MX-150 with a lightguide
43019
MX-Series Multiple Emitter Mounting Kit
Attaches to stand (part #41268) and holds up to four emitters
43070
MX-Series Multiple Emitter Mounting Stand with Acrylic Back Shield
Accommodates up to 4 MX-series emitters
43496
Foot switch with extended cable
60514
Lightguide adapter conversion kit. Converts D-style lightguide - for newer MX-150 units with serial numbers of 1000 or higher.
*Required to use BlueWave® MX-150 with a lightguide
60868
Dual Emitter Mount for MX Controller
C- 41395
Clearance - Three-Sided Acrylic Shield that is manually placed and removed.
Compatible with BlueWave MX-150 and BlueWave LED Flood.
Limited quantities, please submit RFQ for pricing and availability.
C- 42426
Clearance - Emitter Holder Assembly for MX-150 1CH Controller
Limited quantities, please submit RFQ for pricing and availability.
C- 60514
Clearance - Lightguide adapter conversion kit. Converts D-style lightguide - for newer MX-150 units with serial numbers of 1000 or higher.
*Required to use BlueWave® MX-150 with a lightguide
Limited quantities, please submit RFQ for pricing and availability.
Radiometers
40505
ACCU-CAL™ 50-LED for LED Spot and Flood Units: Complete radiometer with 3 mm, 5 mm, and 8 mm lightguide adapters, lightguide simulator*, and an optical adapter for use with the BlueWave® QX4® and BlueWave® MX-275; includes storage/carrying case
*A lightguide simulator is used to measure direct spot lamp intensity (required to calculate lightguide transmissions)
BlueWave® MX-MIM
43299
BlueWave® MX-MIM - includes machine interface module only
Interconnect Cables
42287
Interconnect Cable Assembly - 2 meter
43010
Interconnect Cable Assembly - 10 meter
43011
Interconnect Cable Assembly - 20 meter
43453
12 inch interconnect cable
