BlueWave MX-250

High-Intensity LED Curing System with Expansion Capabilities


CE Marked – Available Globally

Dymax’s next-generation curing system, the BlueWave® MX-250, provides manufacturers with the curing flexibility of past systems but with new expansion capabilities. The unit is comprised of two main parts, a controller with an easy-to-use touchscreen interface and a uniquely designed, high-intensity LED emitter. The LED emitter provides better uniformity and more consistent curing-energy emissions than traditional flood-curing systems over a 50 mm x 50 mm curing area. Curing energy is created using a microprocessor-controlled LED chip set in the emitter. Multiple systems can be grouped together to create larger curing pattern matrixes as needed.

With this new design, the system can be truly tailored to users’ curing needs – allowing them to choose from three different wavelength LED emitters (365, 385, or 405 nm) and providing additional flexibility with the size and pattern of the active curing area. Users also have endless setup flexibility, as this system can be set up as a bench-top unit, or for automated curing processes, the emitter can be easily mounted to robotic arms or further from the controller without fear of intensity losses.

Admin and Production Modes
Admin mode fully unlocks the device and allows for setting curing time and intensity cycles. Each individual curing cycle can be entered and saved as a program and recalled when needed. The production mode is designed for simple operation by manufacturing personnel. Settings and access to admin mode can be password protected using the full QWERTY keyboard.

Systems and Accessories
A complete BlueWave® MX-250 system features a controller/power supply and LED emitter. Emitters are available in 365, 385, and 405 nm wavelengths. Accessories noted below can be added for specific applications. Components are sold separately. Units are warrantied against defects in material and workmanship for one year from the date of purchase.

Take advantage of the opportunity to evaluate our light-curing systems for two weeks free of charge through our Try-and-Buy program.

Note: Controller packages include a 2-meter long interconnect cable used to connect the controller to the emitter. If a longer length is needed, a second interconnect cable can be ordered separately to extend that distance without impacting performance.

Features

Features

  • High intensity
  • Very high uniformity across entire cure area over a wide range of working distances
  • LED emitters available in 365, 385, or 405 nm wavelengths
  • Admin and production modes
  • Touch screen with full keyboard
  • MX Series controllers can be utilized to power both MX-250 and MX-150 emitters
  • Instant on-off
  • Efficient LED temperature management and system monitoring
  • Remote I/O interface

Resources

Resources

System Specifications

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch
Property Specifications
Output Frequency RediCure® – 365 nm
PrimeCure® – 385 nm
VisiCure® – 405 nm

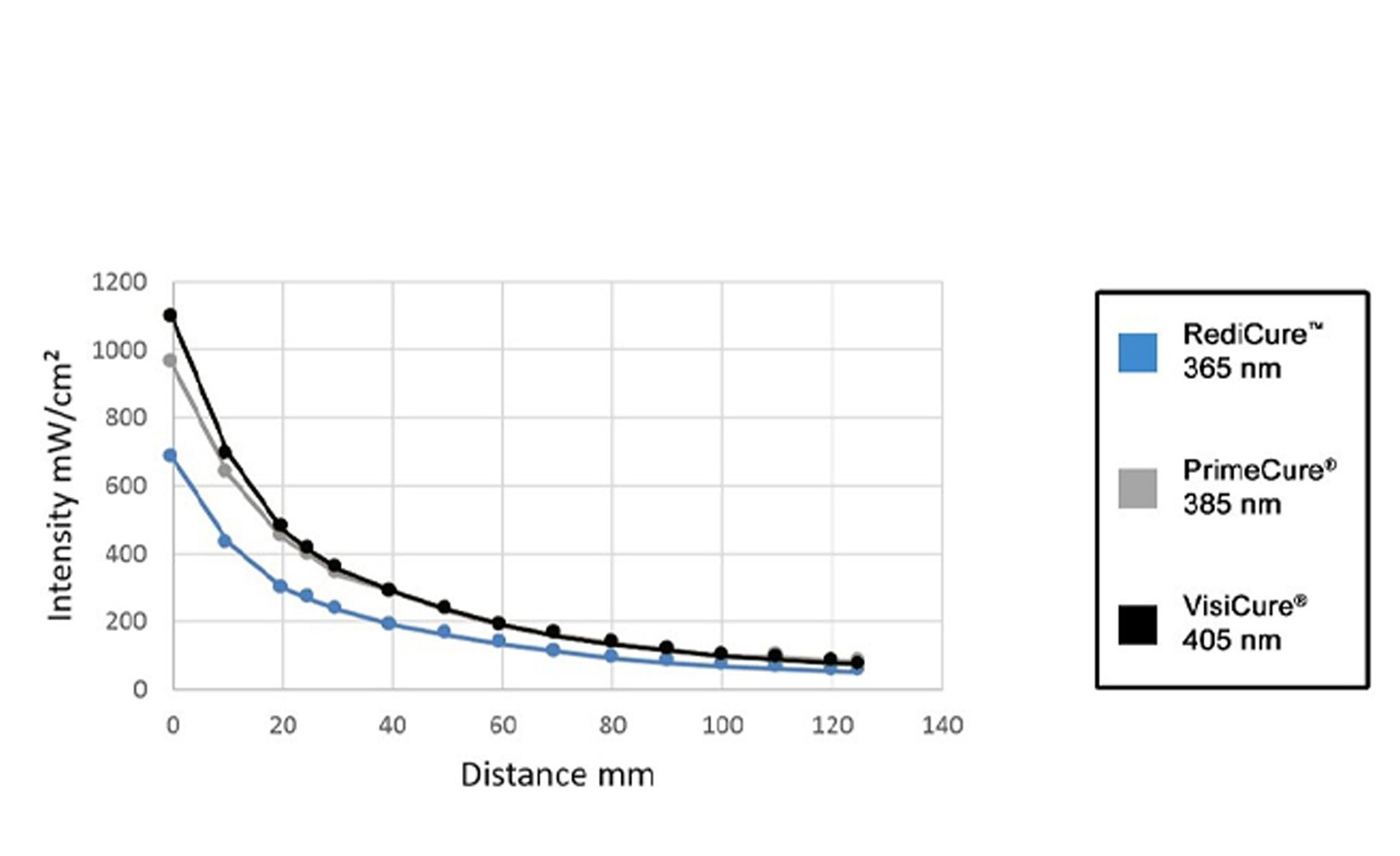

Intensity Output At Array Surface* RediCure® – 684 mW/cm²
PrimeCure® - 955 mW/cm²
VisiCure® - 1,090 mW/cm²
Intensity Output At 25 mm Working Distance* RediCure® – 255 mW/cm²
PrimeCure® - 355 mW/cm²
VisiCure® - 375 mW/cm²
Power Supply Input 100-240 VAC ≈ 2.5A, 50-60 Hz
LED Timer 0 to 999 seconds
Timer Resolution 0.1 seconds
LED Activation Foot pedal, LCD touch screen, or PLC
Cooling Air cooled
Dimensions (H x W X D) Controller: 5.77 in x 3.74 in x 6.26 in (14.6 cm x 9.5 cm x 15.9 cm)
Emitter: 7.9 in x 1.97 in x 1.97 in (20.06 cm x 5 cm x 5 cm)
Weight Controller: 2.6 lbs. (1.18 kg)
Emitter: 1.64 lbs. (0.74 kg)
Unit Warranty 1 year from purchase date
Operating Environment 10-40°C, 0-80% non-condensing
* Measured using a Dymax ACCU-CAL™ 50-LED Radiometer.

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch

Product Spotlight: BlueWave MX-250 LED Flood Curing System

Isamar Pion, Application Engineer for Dymax Corporation, discusses the Dymax BlueWave MX-250 LED light-curing system. Highlights include a substrate curing demonstration and an overview of the system's touchscreen interface and programming capabilities.

Part Numbers

Build a complete solution or find replacement parts for your project

Limited quantities, please submit RFQ for pricing and availability.

42806

LED Emitters - BlueWave® MX-250 Emitter, RediCure® (365 nm)

Global (CE Marked)

42807

LED Emitters - BlueWave® MX-250 Emitter, PrimeCure® (385 nm)

Global (CE Marked)

42808

LED Emitters - BlueWave® MX-250 Emitter, VisiCure® (405 nm)

Global (CE Marked)

43184

BlueWave® MX-Series 2-Channel Controller - No Power Cord*

*The appropriate power cord will be added for European customers

Global

43185

BlueWave® MX-Series 2-Channel Controller - North American Power Cord (115V plug)



Global (CE Marked)

43186

BlueWave® MX-Series 2-Channel Controller - Asian Power Cord (Type G)

Asia

C- 43185 (M20204)

Clearance - BlueWave® MX-Series 2-Channel Controller - North American Power Cord (115V plug)

Global (CE Marked)

43181

BlueWave® MX-Series 4-Channel Controller - No Power Cord*

*The appropriate power cord will be added for European customers

Global

43182

BlueWave® MX-Series 4-Channel Controller - North American Power Cord (115V plug)

North America

43183

BlueWave® MX-Series 4-Channel Controller - Asian Power Cord (Type G)

Asia

C- 43182 (M40025)

Clearance - BlueWave® MX-Series 4-Channel Controller, North American Power Cord

Limited quantities, please submit RFQ for pricing and availability.

Global (CE Marked)

43299

BlueWave® MX-MIM includes only the machine module interface

Global

42287

Interconnect cable assembly - 2 meter

Global

42889

Interconnect cable assembly - 5 meter

Global

43010

Interconnect cable assembly - 10 meter

Global

43011

Interconnect cable assembly - 20 meter

Global

43453

12 inch interconnect cable

Global (CE Marked)

41268

Standard Mounting Stand

Simple and cost-effective mounting stand with adjustable height. Includes an acrylic back shield.

Compatible with Multiple Emitter Mounting Kit (Part #43019)

Global

41395

Three-Sided Acrylic Shield

A simple and cost-effective shield that is removed manually.

Compatible with BlueWave® LED Flood & BlueWave® MX-250 systems.

Global

42909

Single Emitter Mounting Kit

Mounting stand for attaching MX-series emitters.

Global

43019

Multiple Emitter Mounting Kit

Compatible with Standard Mounting Stand (Part #41268).

Global

43070

MX-Series Multiple Emitter Stand with Acrylic Back

Mounting stand with an acrylic back shield for multiple MX emitters. Compatible with stand (Part # 41395)

Global

43496

Foot switch with extended cable

Global (CE Marked)

40505

ACCU-CAL™ 50-LED Radiometer Kit for LED Spots, Floods, and BlueWave® QX4®

Global (CE Marked)
