SpeedMask®

9-7001

PCB Protective Maskant – Color Change on Cure & Blue Fluorescing Tracer

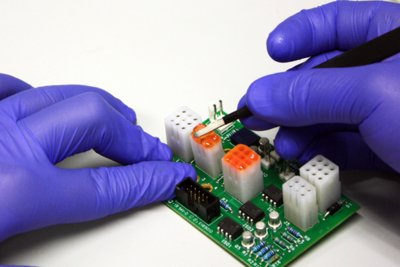

Dymax SpeedMask® 9-7001 protective maskant cures upon exposure to UV light in seconds and changes from pink to clear for easy visual confirmation of cure. The material provides one-layer protection for connectors and printed circuit board (PCB) surfaces during solvent-based or light-curable conformal coating applications in printed wiring board (PWB) assembly.

The product is compatible with gold and copper connector pins and resists solvent-based conformal coatings and primers. 9-7001 is nonslumping and dispenses in a highly visible pink color for ease of application onto components. The maskants can be easily removed, eliminating the concern of ionic contamination or silicone left behind by other masking methods.

This material is in full compliance with the RoHS2 Directives 2015/863/EU

Features

  • Rapidly cures with UV/Visible light
  • See Cure - dispenses pink, cures clear
  • Single layer of protection
  • Non-slumping when dispensed
  • Compatible with gold and copper connector pins
  • Thixotropic for precise manual or automated dispensing
  • Resistance to solvent-based conformal coatings and primers
  • 100% organic - solvent free
  • Silicone & halogen free
  • Tack free with depth of cure up to 0.5 in [12.7 mm]
  • Compliant with with RoHS directives 2015/863/EU

Typical Properties

Looking for additional technical specifications. Download a Product Datasheet in our Resource Library or talk with our technical experts.

Get in touch
Property Values
Viscosity (nominal) 40,000 cP
Cured durometer hardness A70
Cured elongation at break 180%

Looking for additional technical specifications. Download a Product Datasheet in our Resource Library or talk with our technical experts.

Get in touch

Request a Quote

Ready to take the next step? Dymax team member will get back to you shortly.

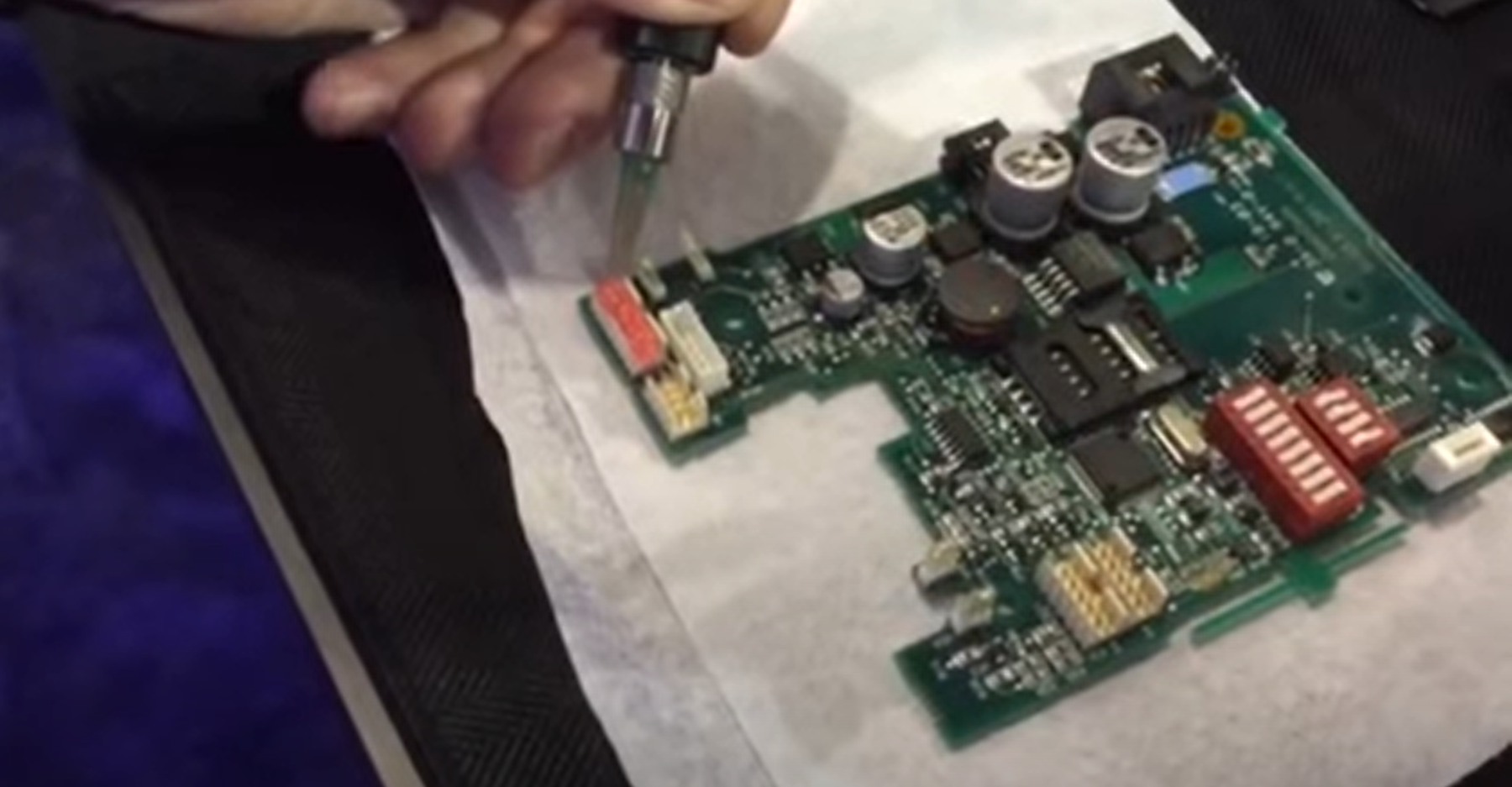

Maskant on PCB Pin Connectors

Dymax Regional Sales Manager Brent Newblom highlights the advantages of light-curable maskants for protecting sensitive PCB pin connectors during processing.

Looking for an Application Engineer?

Our technical experts are ready to answer any product or application questions you may have
