MD® Medical Device Adhesive

215-CTH-LV-UR-SC

LED-Optimized Plastic Bonding Adhesive for Catheter Assembly


Dymax MD® 215-CTH-LV-UR-SC catheter adhesive bonds next-generation catheter designs using Nylon 12, PEBA, and other difficult to bond substrates. The product features Encompass® technology that combines the benefits of Dymax patented See-Cure color-change and Ultra-Red® fluorescing technologies into one light-curable formulation. Adhesives with See-Cure start out bright blue in color for visual confirmation of material placement onto substrates. Upon exposure to sufficient light energy, the blue color transitions to colorless, indicating a complete cure. The bright red fluorescence of Ultra-Red technology contrasts extremely well on plastics that naturally fluoresce blue in color (like PVC), and assists with post-cure visual inspection of the bond area.

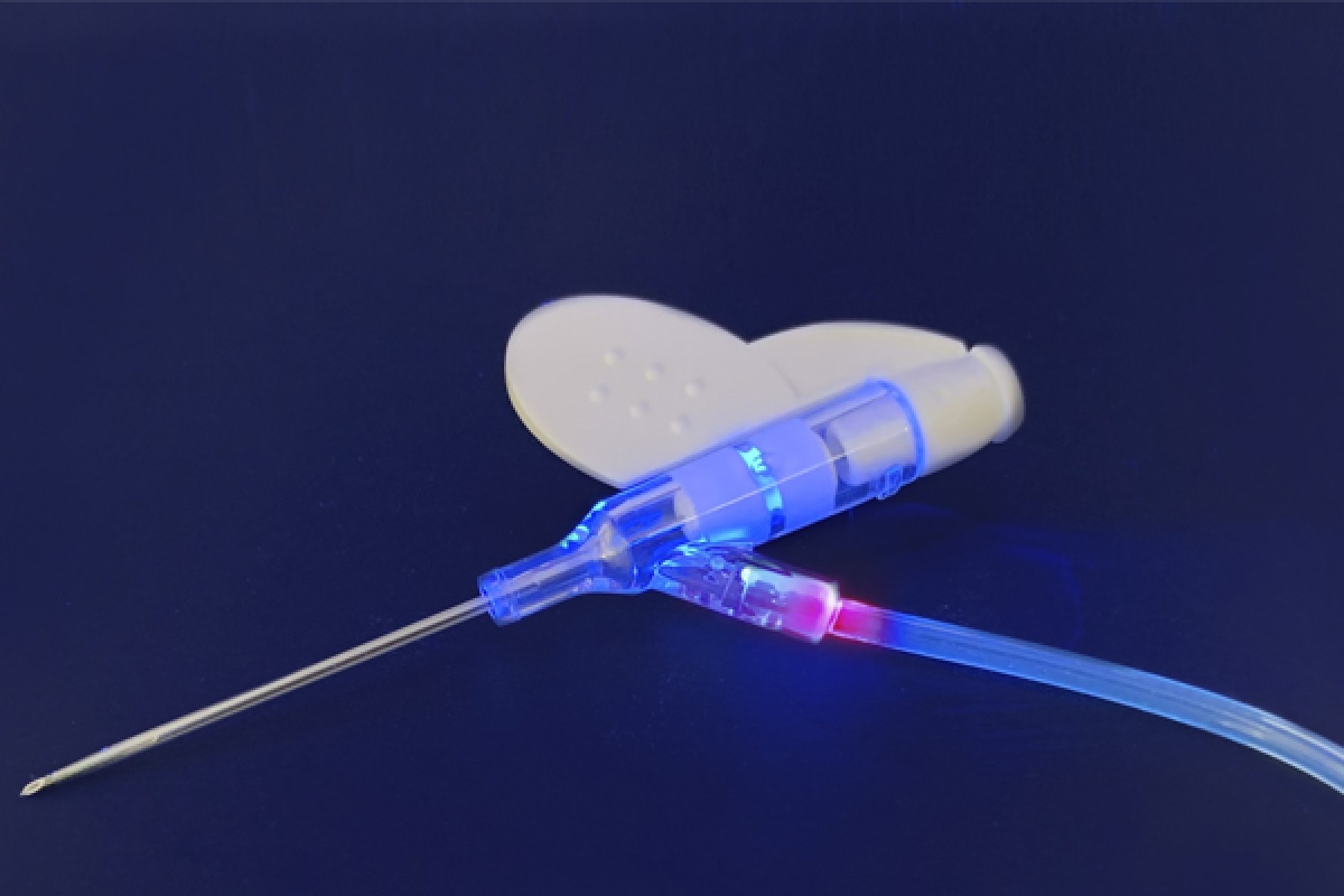

Typical applications include assembling balloon to lumen, hub to lumen, and manifold bond joints. The product also meets a variety of ISO 10993 biocompatibility approvals.

Dymax MD® Medical Device Adhesives contain no nonreactive solvents and cure upon exposure to light. Their ability to cure in seconds enables faster processing, greater output, and lower processing costs. When cured with Dymax UV light curing spot lamps, focused beam lamps, flood lamps, or conveyor systems they deliver optimum speed and performance for maximum efficiency. Dymax lamps offer the optimum balance of UV and visible light for the fastest, deepest cures.

MD® 215-CTH-LV-UR-SC catheter adhesive is in full compliance with the RoHS2 Directives 2015/863/EU.




Features

  • LED optimized for 385 nm /405 nm
  • Fast cure with LED or UV/Visible light
  • See Cure - dispenses blue, cures clear
  • Ultra-Red® - fluoresces bright red
  • Adheres to range of difficult to bond substrates
  • Solvent free
  • Compliant with ISO 10993

Typical Properties

Looking for additional technical specifications. Download a Product Datasheet in our Resource Library or talk with our technical experts.

Get in touch
Property Values
Viscosity (nominal) 450 cP
Cured durometer hardness D55
Cured elongation at break 300%
Recommended substrates Nylon 12; PC; PVC; ABS; PET; PEBA
