BlueWave QX4 V2.0
LED Spot-Curing System: Higher-Performance, Flexible Operation with Touch-Screen Interface
CE Marked - Available Globally

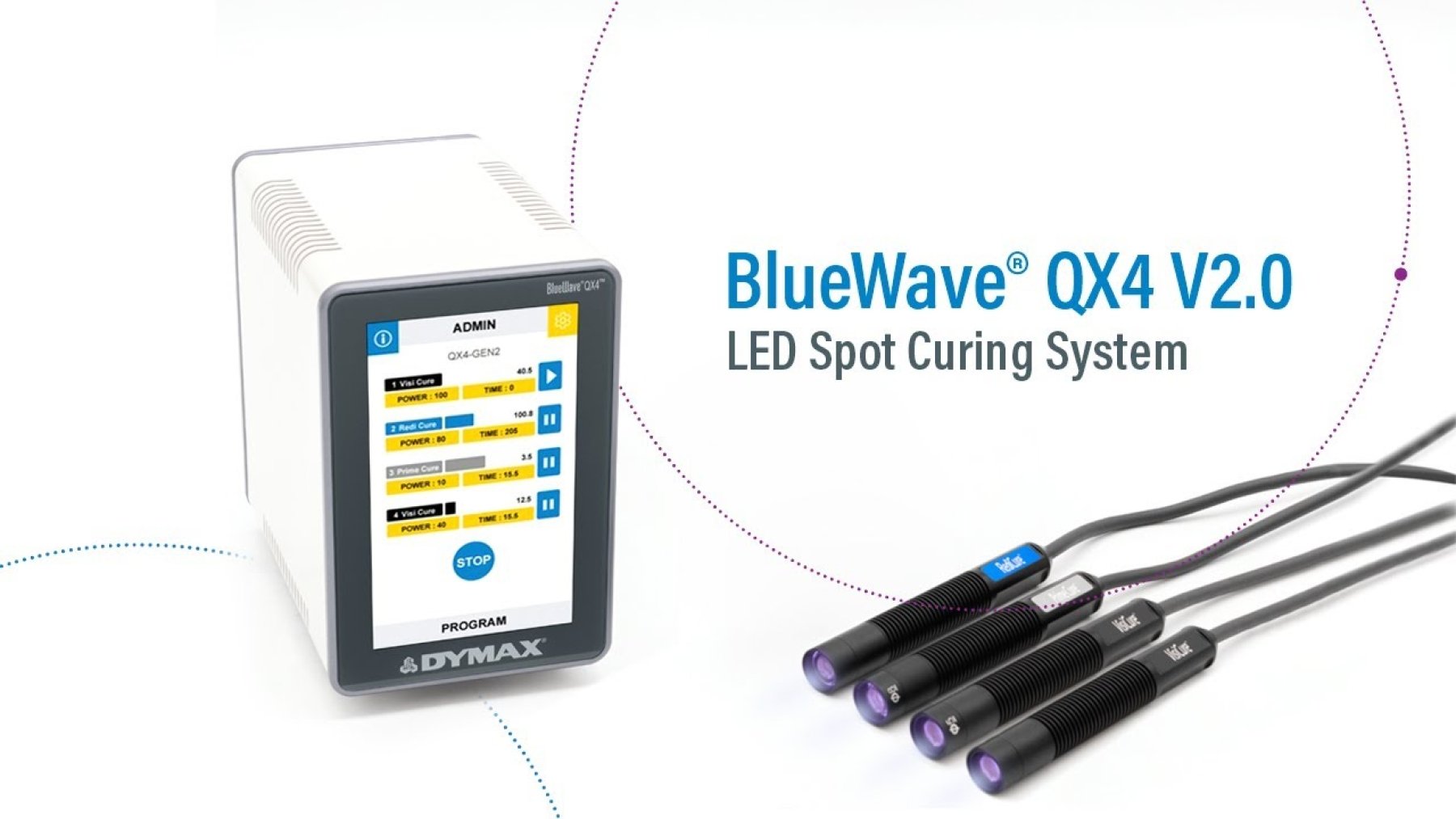

Dymax BlueWave® QX4 V2.0 LED spot curing system provides high-intensity spot-curing technology, a compact size, and incredible curing versatility to create an efficient and user-friendly experience.
This spot curing system features all the benefits of LED-curing technology in a small, versatile unit. The system is comprised of a controller with a footswitch and up to four LED heads. Each head is available in 365, 385, and 405 nm and can be operated in unison or independently of each other. The LEDs are installed directly at the end of the heads, allowing for precise light delivery. Additionally, mounting the heads close to components enables 360° cures of hard-to-reach areas on complex components.
Each spot curing system can be outfitted with either the 3-, 5-, or 8-mm diameter focusing lenses. LED heads and focusing lenses can be used in any combination and can be controlled through the system’s variable mode, a feature that allows each head to be individually programmed for intensity and cycle times. Individual exposure times and intensity settings can be set to 1% increments, giving users maximum curing flexibility.
In addition to the curing flexibility, the BlueWave® QX4 V2.0 also features an easy-to-use control touch screen interface with the capacity to store up to 20 programs. The unit can be activated by a foot pedal or by PLC interface, allowing it to be easily incorporated into automated systems.
The complete BlueWave QX4 V2.0 LED curing system is comprised of a controller/power supply with a footswitch, up to four LED heads/wands. A lens will need to be ordered for each head/wand in order to function properly. The length of the head/wand with the direct wired cable is 1.5 M (end to end). Components are sold separately.
Evaluate our light-curing systems for two weeks free of charge through our Try-and-Buy program.
Features
Features
- One controller controls up to four LED heads for maximum application flexibility
- LED heads for 365, 385, or 405 nm wavelengths for better compatibility with different light-curable materials
- Improved, flexible LED heads can be programmed independently for accurate curing
- Individual exposure times and intensity settings available in 1% increments for each LED head allows for maximum curing flexibility
- Interchangeable/replaceable focusing lenses in 3-, 5-, and 8-mm diameters that allow tailoring of the unit to your curing requirements
- Instant on-off – no warm-up period and more energy efficient
- Efficient LED temperature management for continuous operation without overheating and comfortable hand-held operating temperature
- PLC touch screen interface that is easily incorporated into automated systems
Resources
Resources
Manual
Product Bulletin
Equipment Drawings
Selector Guide
How To
Technical Bulletin
System Specifications
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touch| Property | Specifications |
|---|---|
| Output frequency | RediCure: 365 nm |
| PrimeCure: 385 nm | |
| VisiCure: 405 nm | |
| Intensity output | RediCure: 16.9 W/cm² |
| PrimeCure: 22.9 W/cm² | |
| VisiCure: 22.0 W/cm² | |
| Power supply input | 100-240 V ~1 A, 50/60 Hz |
| LED timer | 0.1 to 999 seconds |
| LED activation | Footswitch, front panel, or PLC |
| Cooling | Natural convection |
| Dimensions (W x D x H) | 3.5 in x 5.5 in x 5.6 in (9.0 cm x 14.1 cm x 13.7 cm) |
| Controller: 147.5 mm x 93.5 mm x 137.4mm | |
| Weight | Controller: 2.2 lbs (1 kg) |
| Head: 4.6oz (130 g) | |
| Unit warranty | 1 year from purchase date |
| Operating environment | 10-40°C (50-104°F), non-condensing |
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touchBlueWave® QX4 V2.0 LED Spot Curing System

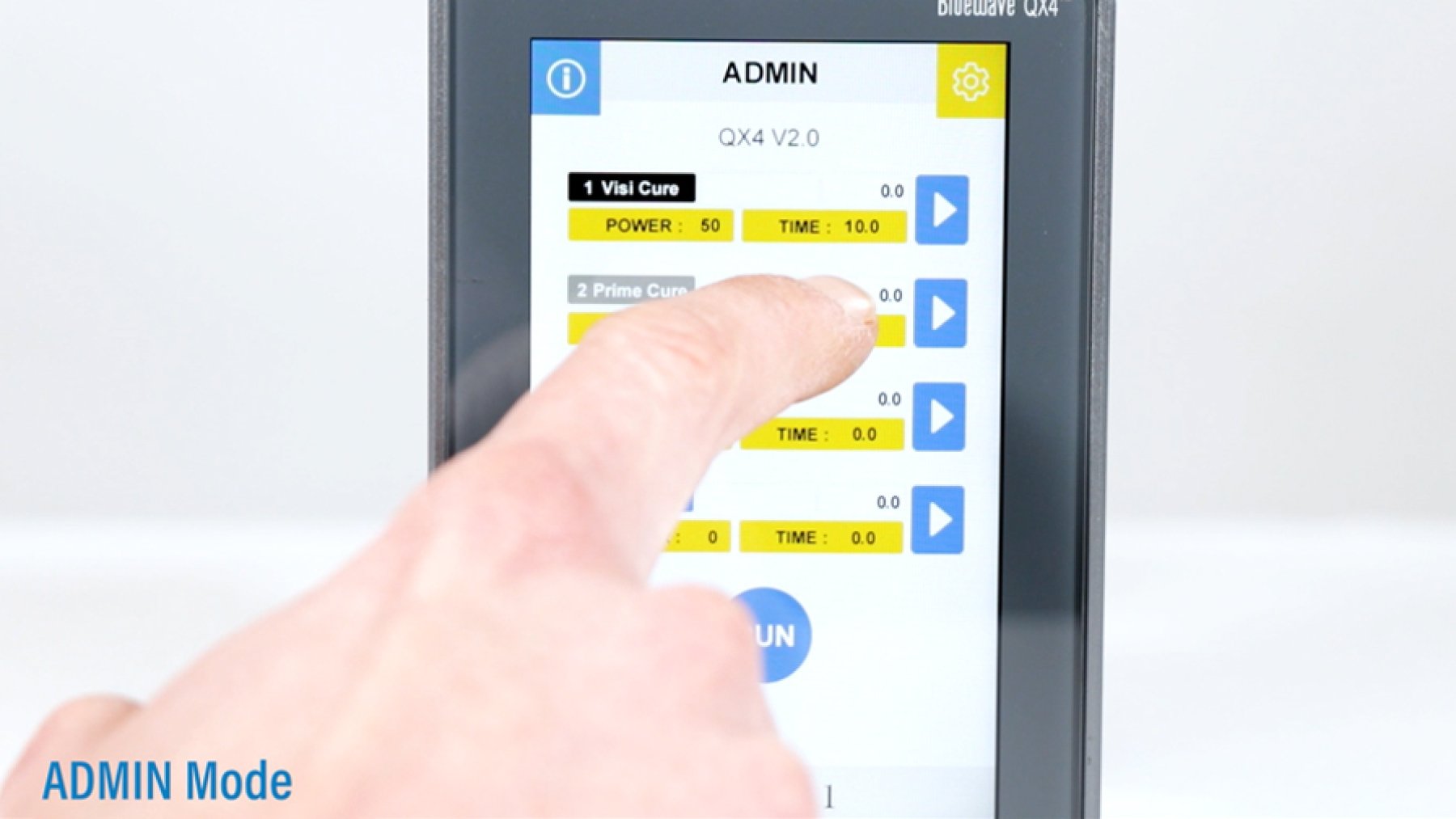

How to Setup & Operate the BlueWave QX4 V2.0
Part Numbers
Build a complete solution or find replacement parts for your project
Limited quantities, please submit RFQ for pricing and availability.
LED Heads
88807
RediCure® 365 nm LED Head/Wand (1 M)
88808
PrimeCure® 385 nm LED Head/Wand (1 M)
88809
VisiCure® 405 nm LED Head/Wand (1 M)
BlueWave® QX4 V2.0 Lens
81205
3-mm Lens
81206
5-mm Lens
81207
8-mm Lens
Connection Cable Extensions
84125
1.0 M Extension
84127
2.0 M Extension
Accessories & Spare Parts
81209
90° Angle Adapter for LED Head
84103
AC Power Adapter
84104
China Power Cord
84123
North American Power Cord
84124
Foot Switch
Radiometers
40505
ACCU-CAL™ 50-LED for LED Spot and Flood Units: Complete radiometer with 3 mm, 5 mm, and 8 mm lightguide adapters, lightguide simulator*, and an optical adapter for use with the BlueWave® QX4 V2.0 and BlueWave® MX-275; includes storage/carrying case
*A lightguide simulator is used to measure direct spot lamp intensity (required to calculate lightguide transmissions)
42218
BlueWave® QX4 Adapter Upgrade Kit
For customers who already own an ACCU-CAL 50-LED radiometer. Includes the integrated optic adapter, upgraded internal software and calibration.
NOTE: Your ACCU-CAL 50-LED must be returned to Dymax for programming.
BlueWave® QX4 V2.0 Controller
88823
Controller/Power Supply with Foot Switch - Asia Type G Power Cord
88824
Controller/Power Supply with Foot Switch - North American Power Cord with 120V Plug
88825
Controller/Power Supply with Foot Switch - UK Power Cord
88828
Controller/Power Supply with Foot Switch - No Power Cord*
*For customers in Europe, the appropriate power cord will be added
Stands
81016
3-Sided Acrylic Shield
88821
QX4 V2.0 Mounting Clamp Kit (including 81016)
88822
Mounting Clamp Extend Rod Kit
