BlueWave LED Flood-Curing System
Higher Intensity & Uniform LED Light Curing for Better Process Efficiency
CE Marked – Available Globally - NOTE: End-of-Production Date 12/31/2021

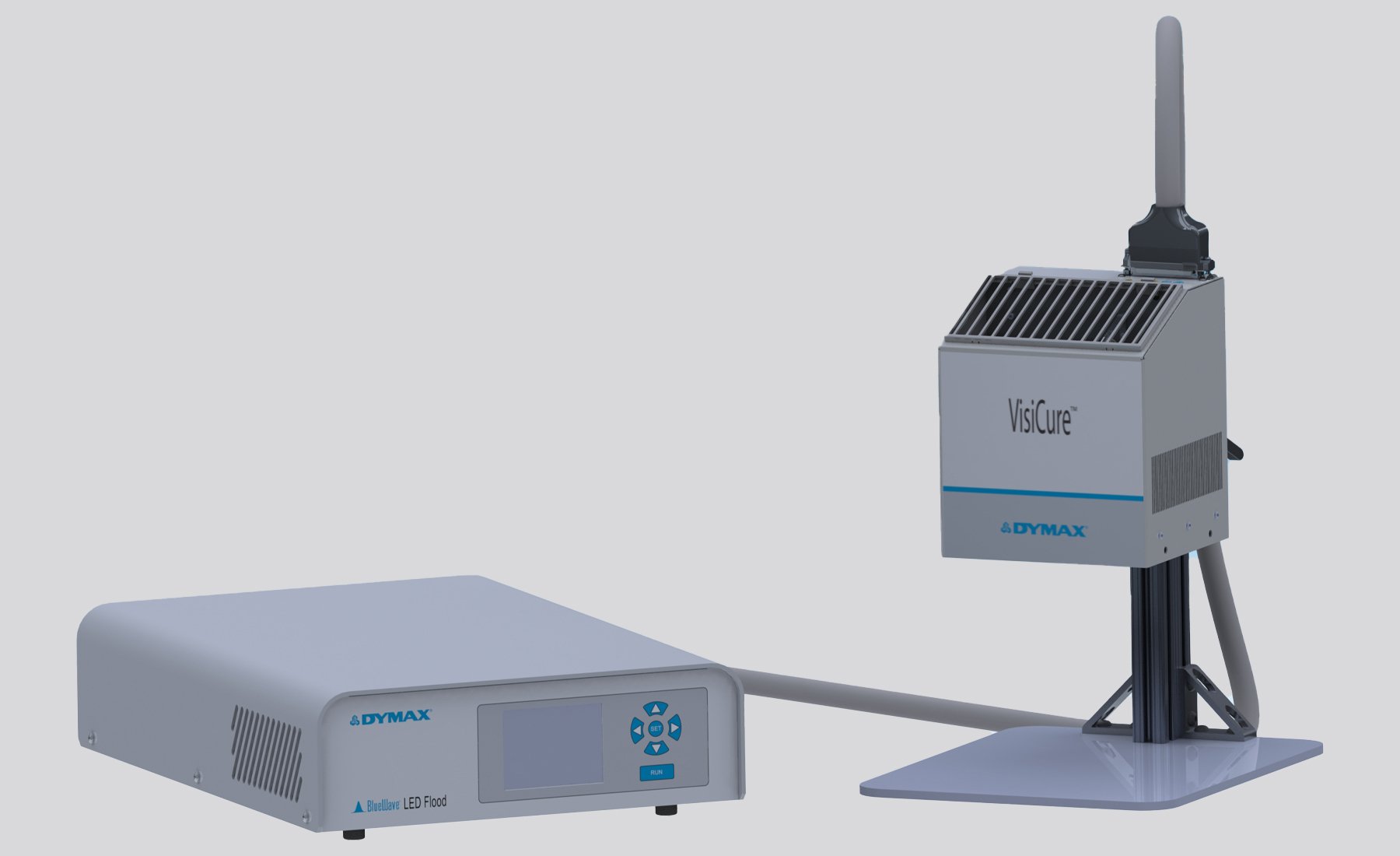

The BlueWave® LED flood-curing system offers high-intensity curing energy over a 5 in x 5 in (12.7 cm x 12.7 cm) area. Cure times in the 5-30 second range are typical when using Dymax light-curable materials. The unit is simple to operate and can be used as a stand-alone system or easily integrated into automated assembly systems.
The system is available in three different irradiator wavelength array configurations (365, 385, and 405 nm). This enables users to fully optimize the curing process between their light-curable material and UV curing chamber. Get all the benefits of LED light-curing technology including more consistent intensity, less energy consumption, a shutter-free design, instant on/off, and cooler curing temperatures. Standard systems include one array, a power supply, and appropriate power and interface cords. Optional accessories such as shields and stands are available and sold separately.
The BlueWave® LED Flood-Curing System as Compared to Other Units
When compared to competitor models, the BlueWave® LED flood-curing system offers greater intensity, a larger active area, better uniformity, and improved short-term degradation, all helping to bring you shorter cure times and more efficient cures. The table below illustrates how this system compares to other LED flood lamps on the market.
| Competitor Models | BlueWave® LED Flood-Curing System | ||
| LED Flood A | LED Flood B | ||
| Technical Data | |||
| Curing Area | 101 mm x 101 mm | 101 mm x 101 mm | 127 mm x 127 mm |
| Intensity* | 266 mW/cm² at 400 nm | 248 mW/cm² at 380 nm | 850 mW/cm² at 385 nm 950 mW/cm² at 405 nm |
| Intensity Value Ratio (Active Area in Square Inches x Intensity / Unit Price) | 0.85 | 0.53 | 1.75 at 385 nm 1.95 at 405 nm |
*Measured with a Dymax ACCU-CAL™ 50-LED Radiometer (320-395 nm) at a lamp height of 1 in (25 mm). | |||
Higher Intensity & Uniformity

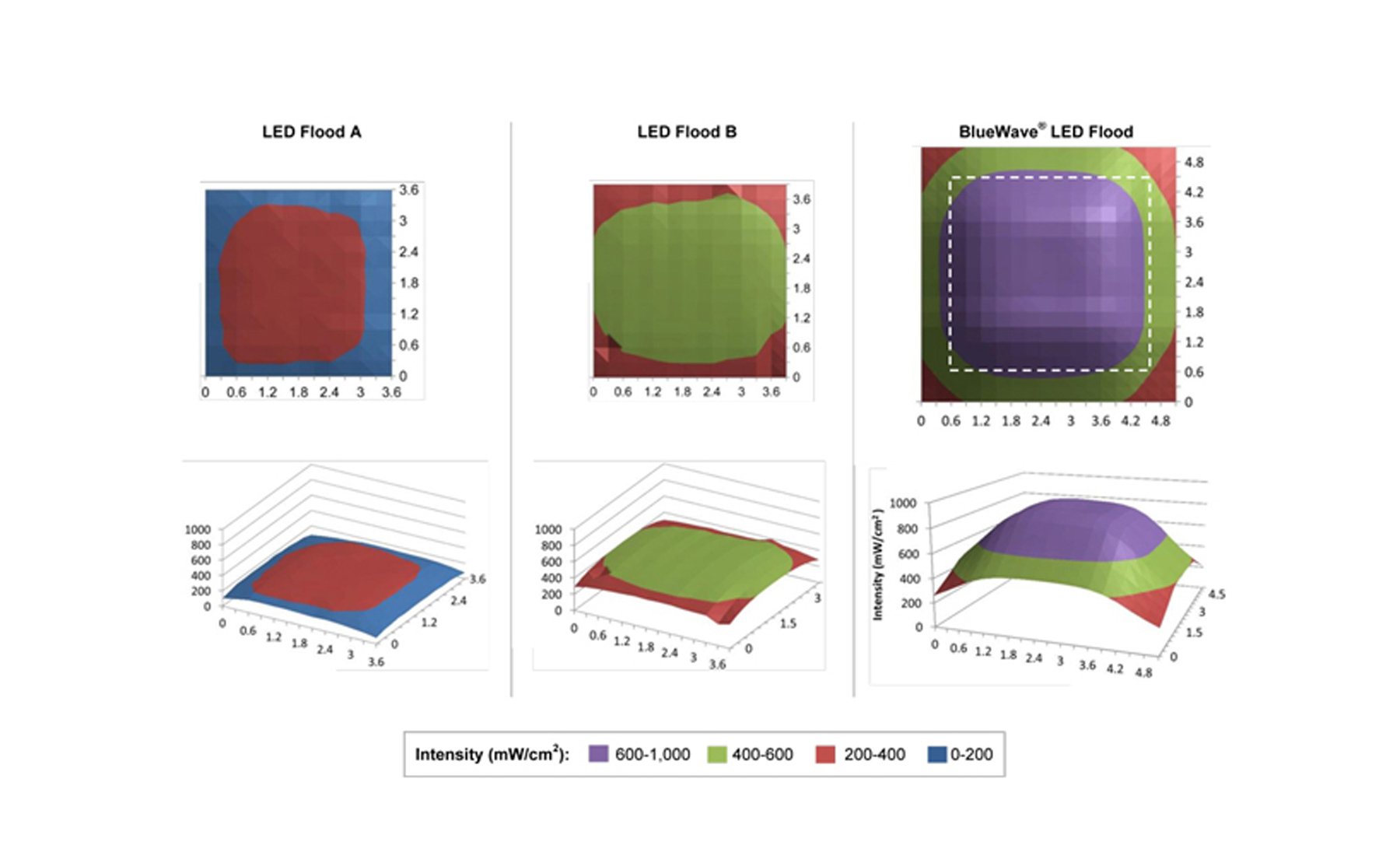

When compared to other units, this flood-curing system provides much higher intensity and more overall uniformity across the active area. These benefits allow shorter cure times, and in turn, faster manufacturing throughput.
Features
Features
- Larger curing area - 5 in x 5 in (12.7 cm x 12.7 cm) active area
- High-intensity LED (850 mW/cm² typical at 385 nm), (950 mW/cm² typical at 405 nm)
- Faster cure times
- Consistent frequency and intensity output for better process control
- Longer life than conventional arc lamps
- Intensity is adjustable for specific applications
- Greener technology
- Mercury-free, environmentally friendly LED
- No hazardous waste disposal requirements
- No ozone generation
- Lower energy consumption than conventional curing lamps
- Instant on/off
- No warm up period
- More energy efficient
- Shutter-free design
- Reliable operation with lower maintenance costs (no moving parts)
- LED flood array available in 365, 385, and 405 nm wavelength options
- Compatible with a variety of UV and visible light-curable materials
- Wavelength flexibility allows co-optimization of adhesive and curing system for optimal cure
- Self-contained, lightweight LED flood array with cable interface and PLC port
- Flexibility to use as a bench-top cure system or mount the LED flood array remotely from the power supply for automated process equipment or conveyor integration
- Flexible system with full line of accessories
Resources
Resources
Manual
How To
Quick Starts / FAQs
Selector Guide
Product Bulletin
Equipment Drawings
System Specifications
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touch| Property | Specifications |
|---|---|
| Typical Initial Output Intensities** | PrimeCure® - 850 mW/cm² |
| VisiCure® - 950 mW/cm² | |
| RediCure® - 450 mW/cm² | |
| Curing Area | 5 in x 5 in (127 mm x 127 mm) |
| Irradiator Head Dimensions, W x H x D | 6.38 in x 4.48 in x 5.79 in (162 mm x 190 mm x 147 mm) |
| Weight | 8 lbs. (3.63 kg) Irradiator |
| 15 lbs. (6.80 kg) Controller | |
| Power Supply Dimensions, W x H x D | 13 in x 4.5 in x 18.25 in (330 mm x 114 mm x 464 mm) |
| Static Uniformity | PrimeCure® - 0.35 |
| VisiCure® - 0.4 | |
| RediCure® - 0.4 | |
| Cooling/Temperature Management | Air cooled |
| Power Requirements | 100 – 240 VAC 50/60Hz (Auto-Ranging) |
| ** | When measured at 25mm distance with an ACCU-CAL™ 50-LED radiometer in Flood mode. |
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touchIntroducing the BlueWave® LED Flood at MD&M West
Part Numbers
Build a complete solution or find replacement parts for your project
Limited quantities, please submit RFQ for pricing and availability.
BlueWave® LED Flood-Curing System with RediCure® (365 nm)
41212
RediCure® - 365 nm HEAD ONLY
41262
RediCure® - 365 nm - No Power Cord*
*For customers in Europe, the appropriate power cord will be added
41289
RediCure® - 365 nm - Asian Version (Type G Power Cord)
41292
RediCure® - 365 nm - North American Version (Cord with 120V Plug)
BlueWave® LED Flood System with PrimeCure® (385 nm)
41210
PrimeCure® - 385 nm HEAD ONLY
41261
PrimeCure® - 385 nm - No Power Cord*
*For customers in Europe, the appropriate power cord will be added
41287
PrimeCure® - 385 nm - North American Version (Cord with 120V Plug)
41290
PrimeCure® - 385 nm - Asian Version (Type G Power Cord)
BlueWave® LED Flood System with VisiCure® (405 nm)
41211
VisiCure® - 405 nm HEAD ONLY
41260
VisiCure® - 405 nm - No Power Cord*
*For customers in Europe, the appropriate power cord will be added
41288
VisiCure® - 405 nm - North American Version (Cord with 120V Plug)
41291
VisiCure® - 405 nm - Asian Version (Type G Power Cord)
Stands & Shielding
41321
360° shielding with swing-up door and slide-out shelf. Not compatible with Dymax shutters.
*This light shield requires version 3.0 or greater BlueWave® LED flood software. Dymax can determine software version based on the product serial number.
41340
Retro-Fit Kit (for use with UVCS Conveyors). This kit is used to mount BlueWave® LED floods in the Dymax UVCS conveyor.
41395
A three-sided acrylic shield that is removed manually
Compatible with BlueWave® LED Flood & BlueWave® MX-250 systems.
Radiometers
40519
ACCU-CAL™ 50-LED Radiometer
