Dymax UVCS LED High-Intensity Light-Curing Conveyor Systems


Available Globally, Except Europe

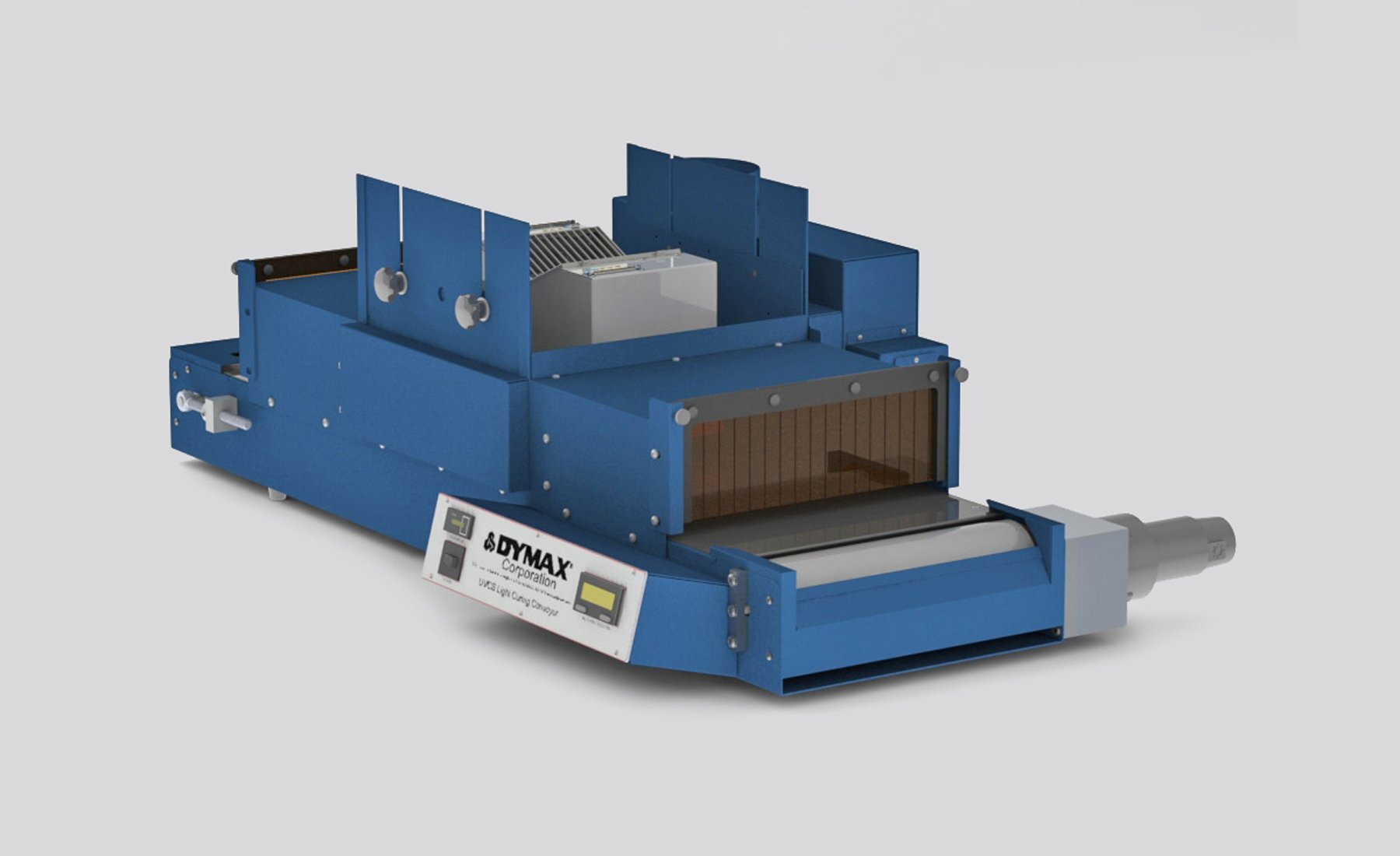

Dymax LED light curing conveyor systems offer consistent, fast, safe, and efficient LED curing of widths up to 10 in in a 12 in wide parts width platform. These conveyors are designed for curing LED curable adhesives, LED curable coatings, and LED curable inks that react in the UVA and/or visible spectral ranges.

Consistent line speed, consistent lamp height, and consistent intensity together provide a consistent curing process. These conveyors do not emit stray light and can be outfitted with one or two 365, 385, or 405 nm lamps positioned in either in-line or side-by-side configurations as required by the application.

Take advantage of the opportunity to evaluate our light-curing systems for two weeks free of charge through our Try-and-Buy program.

Features

Features

  • Available globally, except Europe
  • Consistent LED curing
  • Complete LED shielding
  • Adjustable lamp-to-belt distance
  • 4 in, 6 in, or 10 in vertical clearance
  • Integral cooling and vacuum hold-down
  • 1 to 32 fpm
  • Bench-top conveyor (cart optional)

Resources

Resources

System Specifications

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch
Property Specifications
Maximum Intensity¹ VisiCure®: 950 mW/cm²
PrimeCure®: 850 mW/cm²
RediCure®: 450 mW/cm²
Maximum UVA Energy² PrimeCure® at 5 fpm 1.44 J/cm²
Line Speed 1 to 32 fpm
Illuminated Width 5 in or 10 in (depending on the number and orientation of the LED flood lamps)
Voltage LED Array(s) – 90V to 260V; Conveyor – 120V or 220/230V
Vertical Clearance 4 in (Standard), 6 in (with 2 in riser, PN 39218), 10 in (with 6 in riser, PN 39280)
Overall Dimensions (L x W x H) 50.5 in x 29.8 in x 16.4 in (128 cm x 76 cm x 72 cm)
¹ Intensity readings vary widely depending on the make and model of the radiometer. These are typical output intensities measured with the ACCU-CAL™ 50-LED Radiometer.
² Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the Power Puck II Radiometer.

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch

Introducing the BlueWave® LED Flood at MD&M West

Welcome to the Dymax booth at MD&M West! In this video, you'll see our new BlueWave® LED Flood, designed to offer a larger and higher intensity cure area, as well as several new medical adhesives.

Part Numbers

Build a complete solution or find replacement parts for your project

Limited quantities, please submit RFQ for pricing and availability.

41343

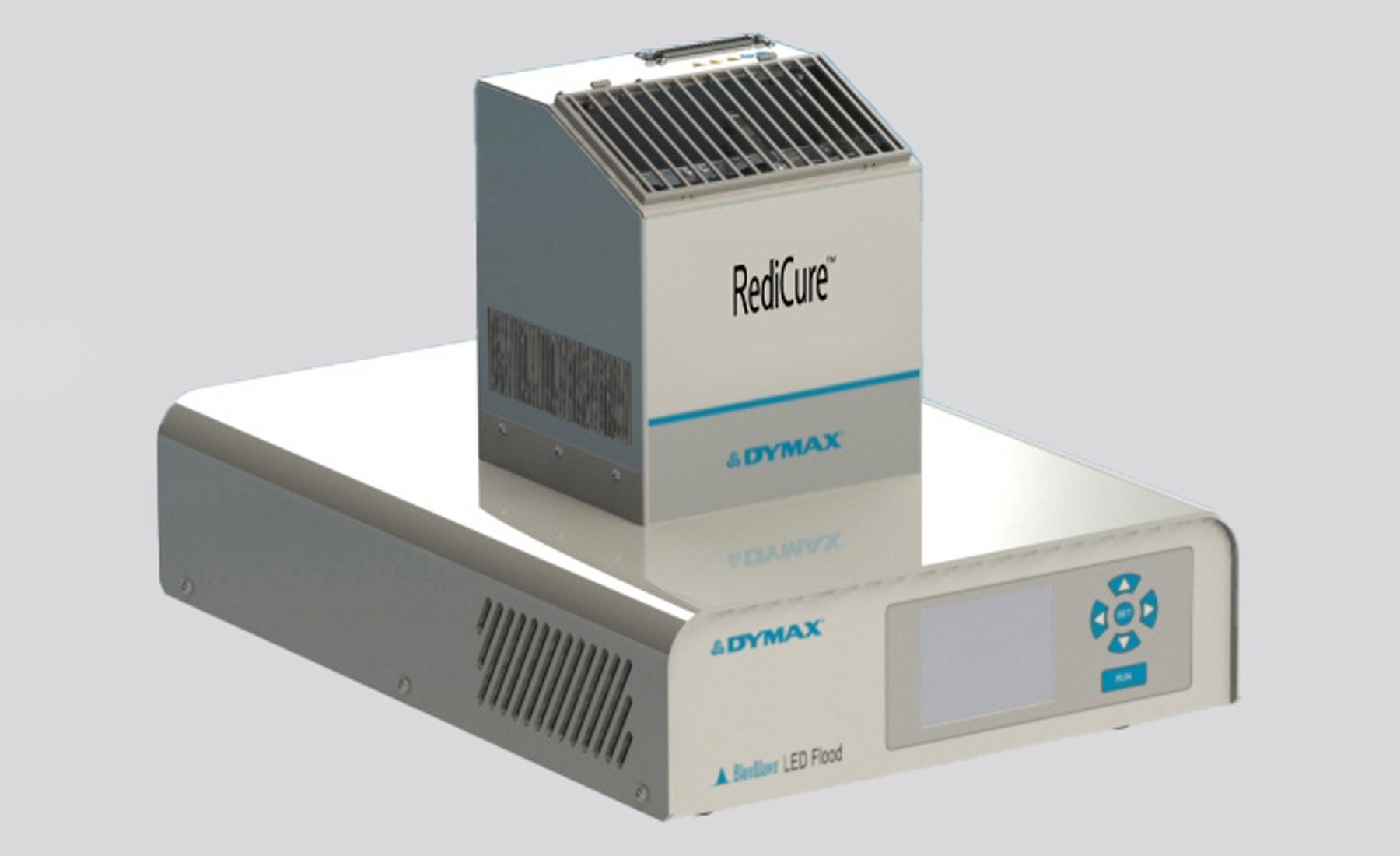

One RediCure® (365 nm) LED Array; North American Version (120V plug); Conveyor Voltage 120V

North America

41345

One RediCure® (365 nm) LED Array; North American Version (120V plug); Conveyor Voltage 230V

North America

41347

One RediCure® (365 nm) LED Array; Asian Version (Type G plug); Conveyor Voltage 230V

Asia

41353

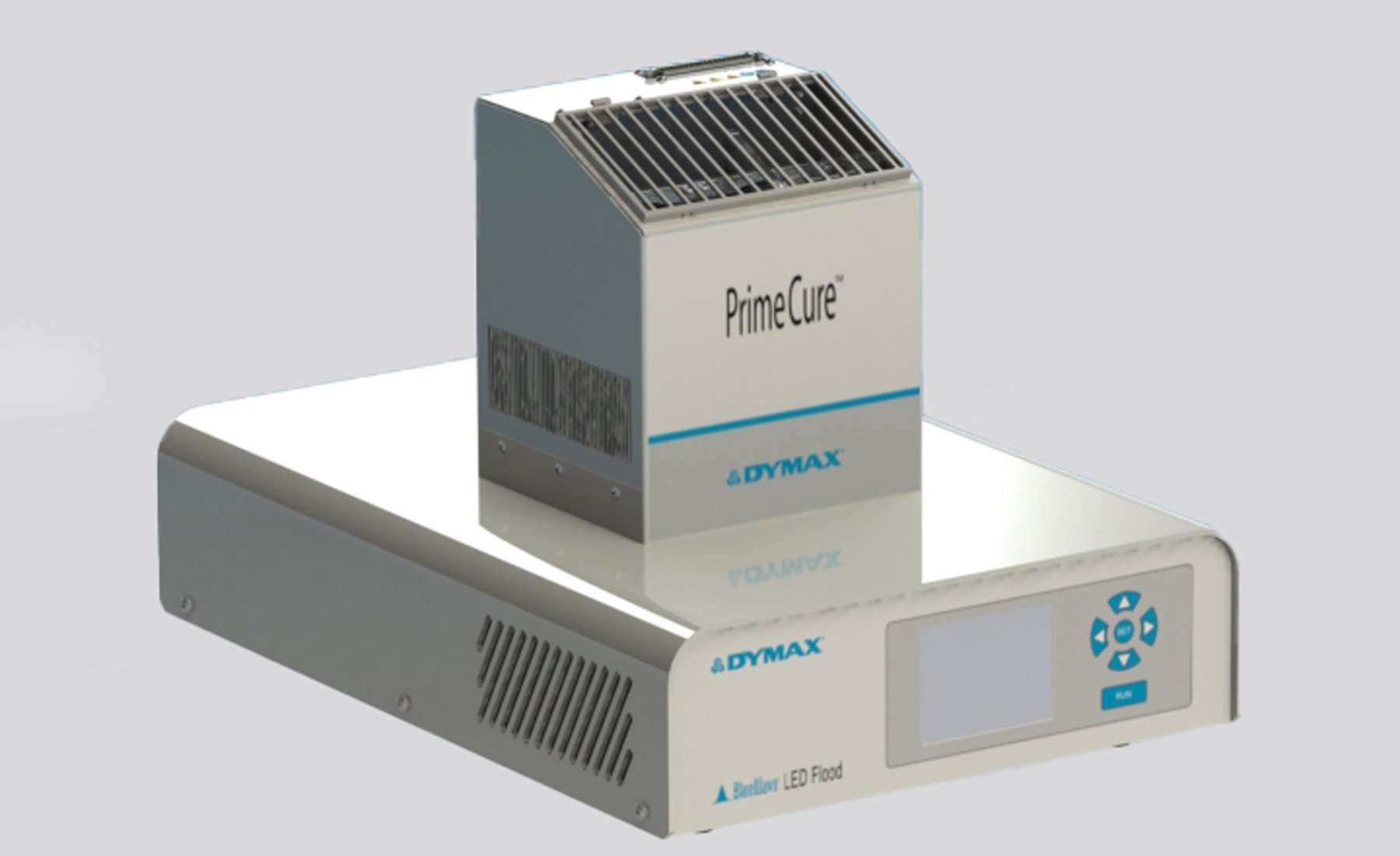

One PrimeCure® (385 nm) LED Array; North American Version (120V plug); Conveyor Voltage 120V

North America

41355

One PrimeCure® (385 nm) LED Array; North American Version (120V plug); Conveyor Voltage 230V

North America

41357

One PrimeCure® (385 nm) LED Array; Asian Version (Type G plug); Conveyor Voltage 230V

Asia

41363

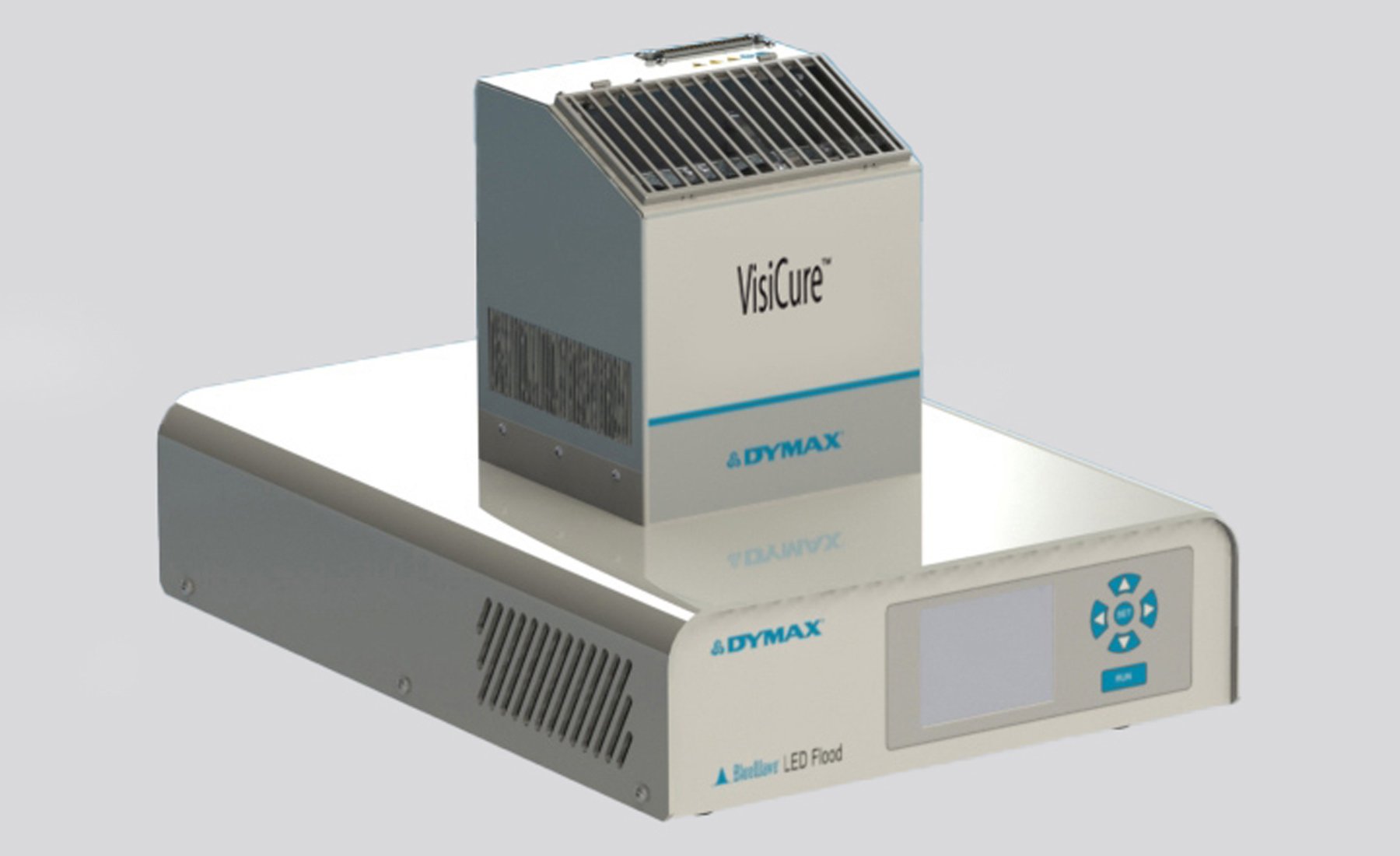

One VisiCure® (405 nm) LED Array; North American Version (120V plug); Conveyor Voltage 120V

North America

41365

One VisiCure® (405 nm) LED Array; North American Version (120V plug); Conveyor Voltage 230V

North America

41367

One VisiCure® (405 nm) LED Array; Asian Version (Type G plug); Conveyor Voltage 230V

Asia

41344

Two RediCure® (365 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 120V

North America

41346

Two RediCure® (365 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 230V

North America

41348

Two RediCure® (365 nm) LED Arrays; Asian Version (Type G plug); Conveyor Voltage 230V

Asia

41354

Two PrimeCure® (385 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 120V

North America

41356

Two PrimeCure® (385 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 230V

North America

41358

Two PrimeCure® (385 nm) LED Arrays; Asian Version (Type G plug); Conveyor Voltage 230V

Asia

41364

Two VisiCure® (405 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 120V

North America

41366

Two VisiCure® (405 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 230V

North America

41368

Two VisiCure® (405 nm) LED Arrays; Asian Version (Type G plug); Conveyor Voltage 230V

Asia

41995

Four RediCure® (365 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 120V

North America

41996

Four PrimeCure® (385 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 120V

North America

41997

Four VisiCure® (405 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 120V

North America

42003

Four RediCure® (365 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 230V

North America

42004

Four PrimeCure® (385 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 230V

North America

42005

Four VisiCure® (405 nm) LED Arrays; North American Version (120V plug); Conveyor Voltage 230V

North America

42010

Four RediCure® (365 nm) LED Arrays; Asian Version (Type G plug); Conveyor Voltage 230V

Asia

42011

Four PrimeCure® (385 nm) LED Arrays; Asian Version (Type G plug); Conveyor Voltage 230V

Asia

42012

Four VisiCure® (405 nm) LED Arrays; Asian Version (Type G plug); Conveyor Voltage 230V

Asia

41340

Convert EC Lamp Conveyors to LED Conveyors with one or two arrays.
Does not work with Fusion lamps.

Global Except Europe

40519

ACCU-CAL™ 50-LED for LED Flood Units: Complete radiometer for LED flood and conveyor systems; includes storage/carrying case

Global (CE Marked)
